200 channels diversity UHF wireless microphone for stage performance TM-PRO200

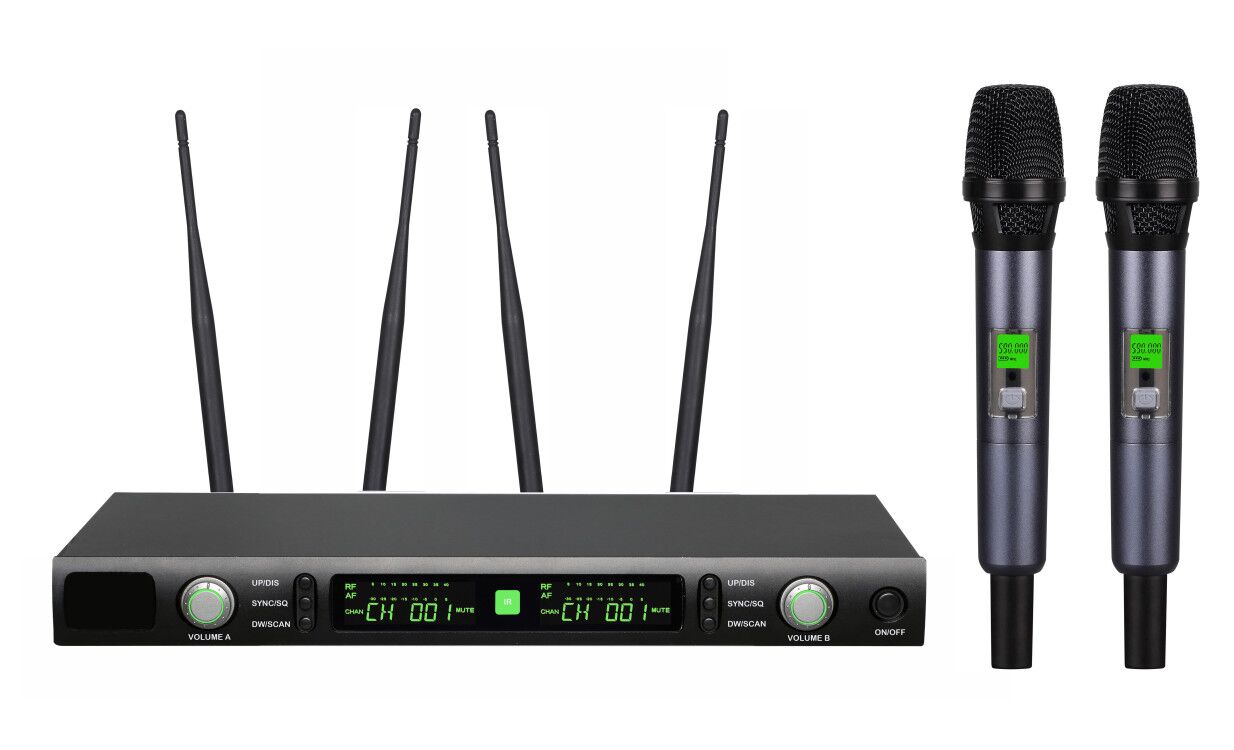

A professional solution suitable for stage use, this 200 Channels Diversity UHF Microphone features a true diversity receiver and guarantees no dead spots in the working area. Adopts advanced digital pilot technology with 200 frequencies. Each group has 100 frequencies and can ensure 200 systems without interference. The infra-red automatic scan feature helps to search available frequencies. The microphone has a splendid LCD display that shows the RF level, AF level and microphone battery voltage. The transmitting distance can reach up to 80 metres. The system includes two wireless microphones and a receiver unit with rack mounting hardware.
Specifications:
Comprehensive Performance
• Frequency Range: 500 - 865MHz
• Frequency Stabilization: <±30ppm
• Dynamic Range: >100dB
• Total Harmonic Distortion:<0.5%
• Frequency Response: 40Hz-15kHz±3dB
• Audio Output Level: Balance 400mV, Unbalance 400mV
Receiver
• Power Supply: DC15-17V
• Consume Power: 3 WATT
• Signal/Noise Ratio: >95dB
• Image & Spurious Rejection: >80dB
• Border upon Channel Rejection: >80dB
• Receiving Sensitivity: 5dBuV
• De-Emphasis: 50uS
Handheld Microphone
• Transmitter Power: 30mW
• Modulation Type: FM
• Deviation: 40KHz
• Spurious Emission: >60dB
• Battery Voltage: 3V (2x1.5V AA Battery)
• Continuous Using: 5 hours
