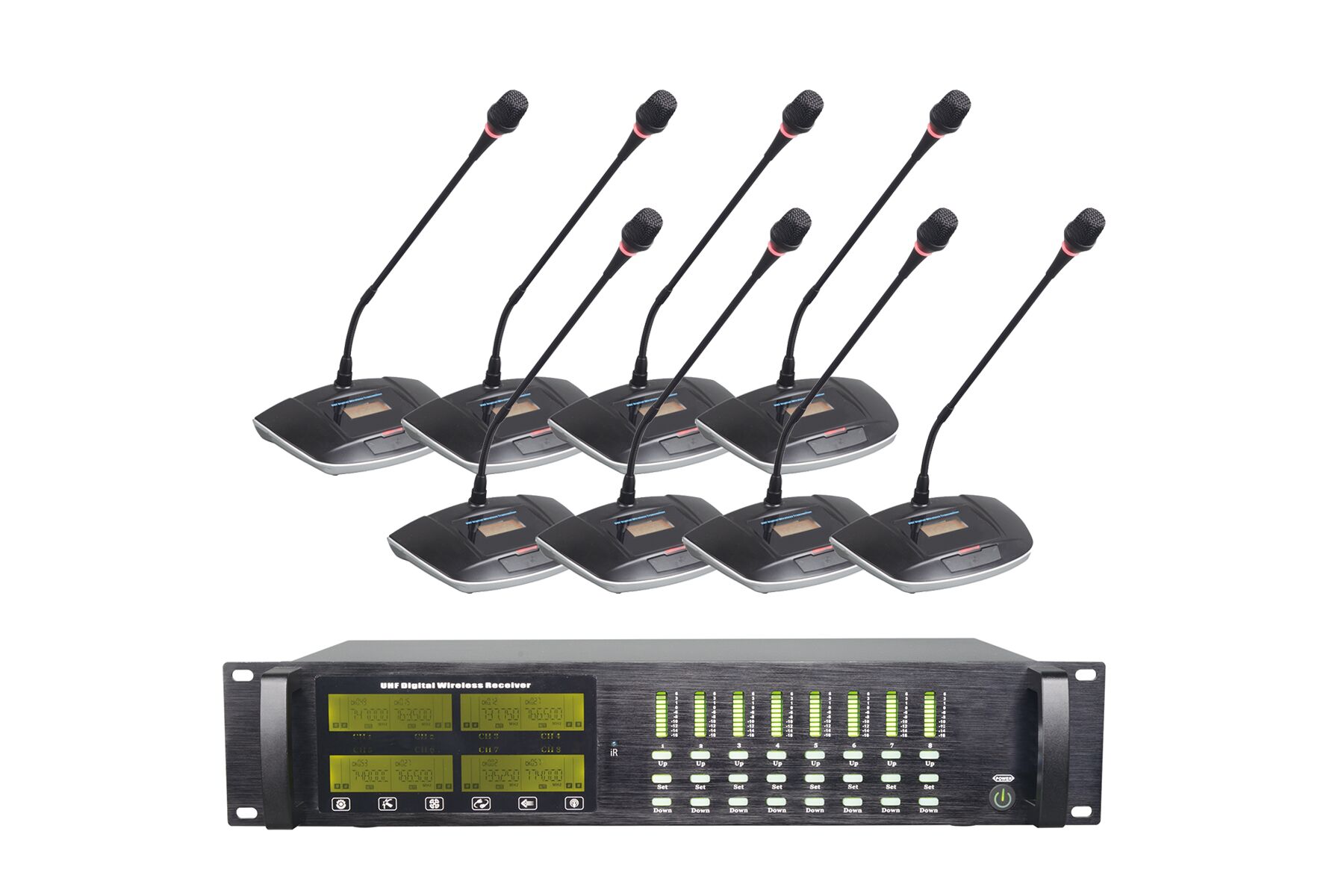

Tymine Wireless conference microphone TM-US08C
1 .Wireless conference mic 8 channel
2. UHF band 740-790Mhz, total 25*8 selectable frequencies
3. EIA 2U standard rack unit design, metal housing
3. PLL with high-precision quartz crystal, coupled with MCU control delivers high stability.
4. IR auto scan & ACT channel sync setup
5. Advance digital pilot enjoys anti-interference and superior reception.
6. Mute button on transmitter
7. High sensitivity and superior sound quality
8. SMT technics delivers high performance.
Specifications
|
Receiver |
|
|
Frequency range |
UHF 740-790MHz |
|
Preset channel |
200 selectable (25 CHs in each channel) |
|
Oscillation mode |
PLL (Phase locked loop) |
|
Stability |
± 10ppm |
|
Frequency Response |
-95 ~-71dBm |
|
Distortion |
≤ 0.5% |
|
Frequency response |
40 ~ 18000 Hz |
|
Distortion |
≤ 0.5% |
|
S/N ratio |
≥ 108dB |
|
audio output |
800mv |
|
Power supply |
DC12V |
|
Power consumption |
≤14W |
|
Output |
8 balanced & 1 unbalanced |
|
Transmitter |
|
|
Frequency range |
740 -790MHz |
|
Preset channel |
200 selectable (25 CHs in each channel) |
|
Oscillation mode |
PLL (Phase locked loop) |
|
RF power |
10 ~ 30mW |
|
Distortion |
≤ 0.5% |
|
Battery |
2*AA |
|
Working time |
Over 8 hours |
