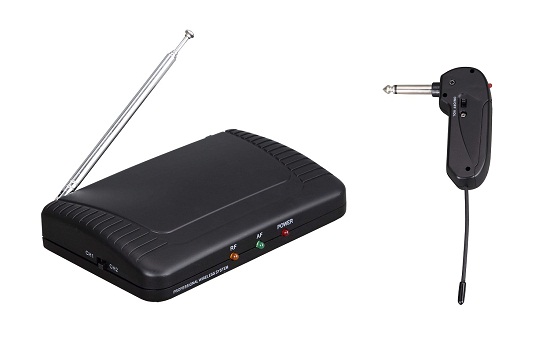

UHF guitar wireless microphone

Features


1. UHF wireless guitar system.

2. No more tripping over cords.

3. Two frequencies are optional

4. Working range over 60M in Ideal condition.

5. 100% SMT technics ensures high performance.

6. Workis with any instrument that plugs into an amp

7. Transmitter requires only 1 AAA battery

System Specifications

Working range 60M

Working temperature range 5°C-45°C

Frequency range 470-865MHz

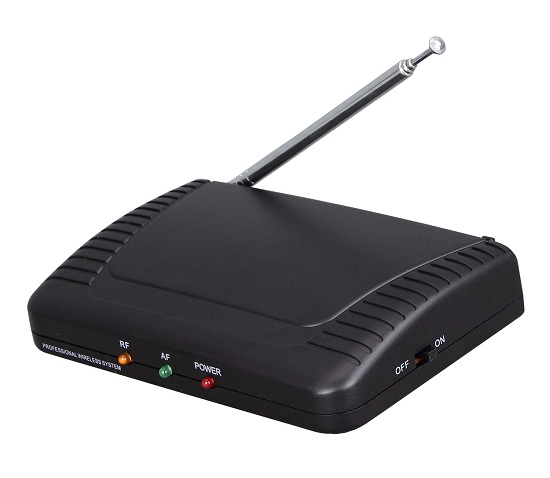

Receiver

Receiving sensitivity   <8uV

P/N Ratio> 50dB

De-emphasis 50uS

Output impedance 600 Ohms

Audio output0-0.5V

Power AC110-240V

Dynamic range≥60dB

THD
 ≤1%

 Receiver size
  11.7*7*2.5 cm

Transmitter

Frequency stability
 ±0.005%

Output power
 ≤10mW

Suppression of stray radiation
 >40dB

Modulate mode
 FM

Max. Frequency
 ±75KHz


Pre-emphasis
 50uS

Battery
 1xAAA
