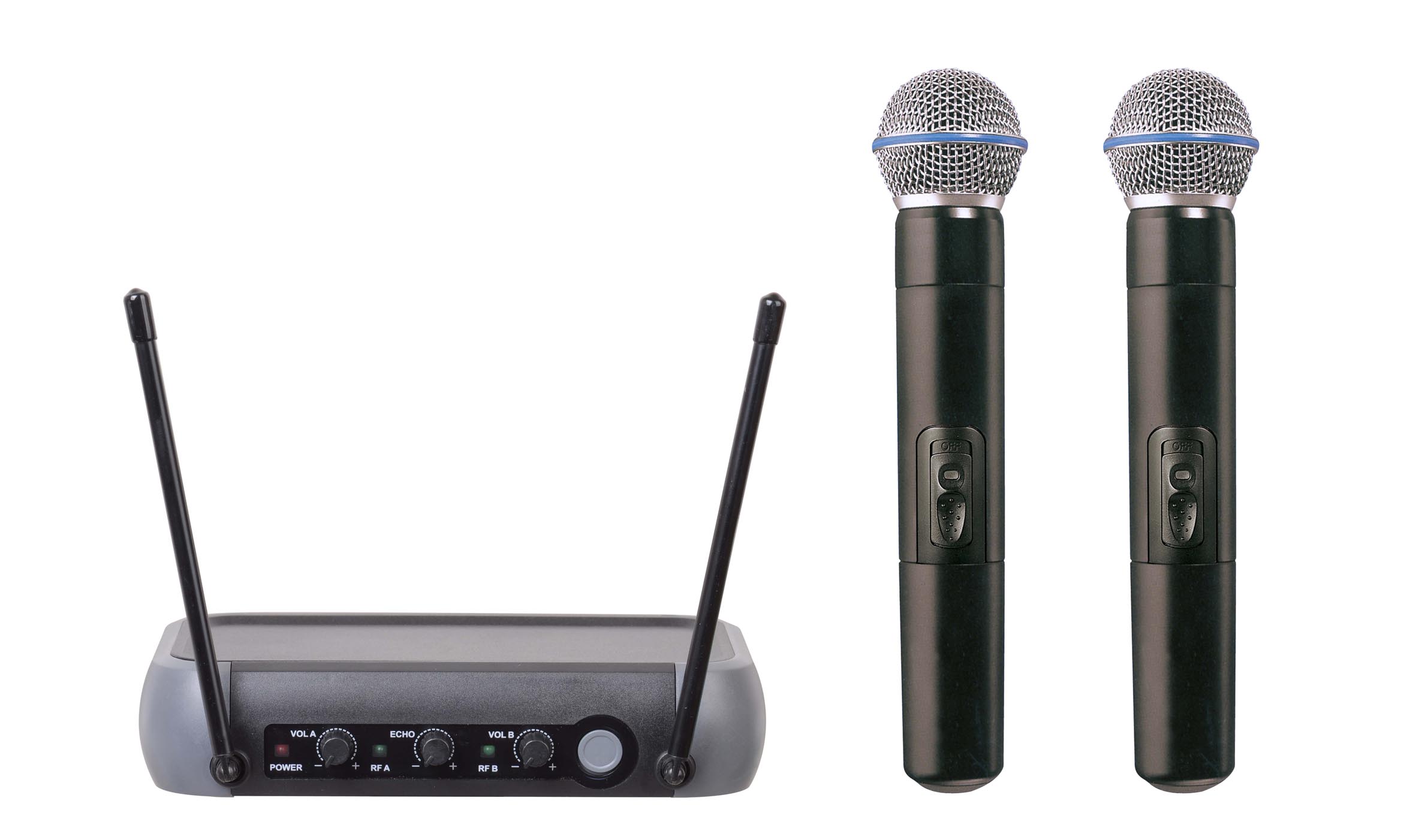

VHF Dual channel wireless microphone with ECHO

Features

1. Dual channel VHF wireless microphones system with Echo control

2. Dual Fixed frequency

3. Very are suited for stage performance & home karaoke use

4. Handheld mic and lavalier or headset available


Specification

System Specifications

Working range 50M

Working temperature range 5°C-45°C

Frequency range 150-270MHz

Receiver

Receiving sensitivity <8uV

P/N Ratio> 50dB

De-emphasis 50uS

Output impedance 600 Ohms

Audio output 0-0.5V

Power AC220V/110V

Dynamic range ≥60dB

THD ≤1%

Transmitter

Frequency stability±0.005%

Output power ≤30mW

Suppression of stray radiation  >40dB

Modulate mode FM

Max. Frequency ±75KHz

Microphone Dynamics

Pre-emphasis 50uS

Battery 2*AA
